SPEC OF DROP-IN ISOLATOR
Product introduction:
Part Number:
DI-900
-005A
Features:
Low IMD
Low Insertion Loss
Specification:
Frequency (MHz)
851-915
Temperature range
+20℃
~
+40℃
-10
℃
~
+80℃
-40
℃
~
+100℃
VSWR
<1.13
<1.15
<1.2
Power
(
F/R
)
150W /20dB 60W
150W /20dB 60W
150W /20dB 60W
Isolation (dB)
≧
25.0
≧
23.0
≧
21.0
Insertion loss(dB)
<0.20
<0.25
<0.30
IM3(dBc)
<
-75dBc Power @ 2X30W CW

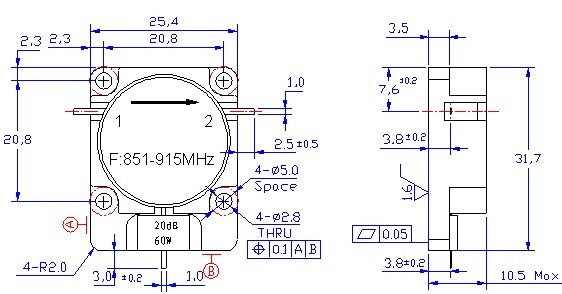

Outline Drawing:
GENERAL PART TOLERANCE IS ±0.1 UNLESS OTHERWISE STATED
REV.:00
