WAVE-GUIDE ISOLATOR

产品介绍:
Part Number:
WI-23000-002A
Features:
Economically priced
Miniaturization
Broadband Transmission
Specification:
Frequency 21.70-23.70 GHz
Temperature range -45℃~+75℃
Return loss ≧20.0 dB
Isolation ≧20.0 dB
Insertion loss ≦0.4dB
Power Handling(F/R) 5W CW

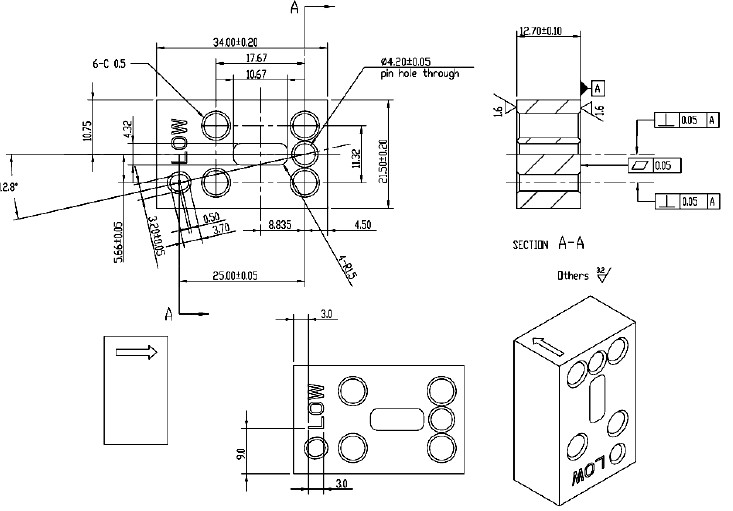

Outline Drawing (Unit : mm)
Other requirements for all above products:
1) Cavity materials: Aluminum alloy conductive oxide (RoHs Comply)
2) Product surface: No damage, scratches, stains
3) Isolator packing: Preventing Moisture, shock, and pollution
4) Environment test
Working temperature: -40°C~80°C @ humidity 95% R.H.
Temperature cycle test: -55°C~85°C, 10cycles, based on MIL-STD-883, method 1010(Test condition A),
every cycle 1hour
Humidity(Stable condition):40°C@ Humidity 95% R.H.,96 hours,based onMIL-STD-202,method 103B
Vibration:10-55Hz,X,Y,Z each coaxial 2 hours,based on MIL-STD-202, method201A
REV.:00
